The AHPI7292S module series allows building long range, ultra-low power Wi-Fi networks in sub 1 GHz license-exempt bands, utilizing the very popular and open platform - the Raspberry Pi™. Wi-Fi HaLow™ enables connectivity for many applications, including sensors and wearables. This module uses the 866 MHz frequency, fully meeting European regulatory requirements.

With support for standalone and host based modes, up to 15 Mbps data throughput and complete SDK, getting started with this new Wi-Fi standard will be straightforward.

Features:

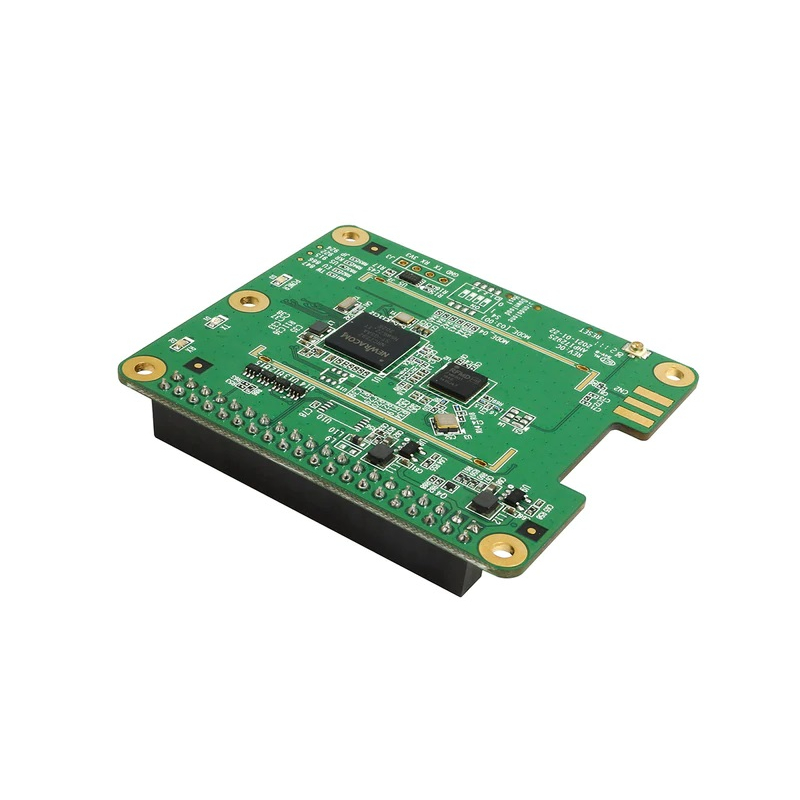

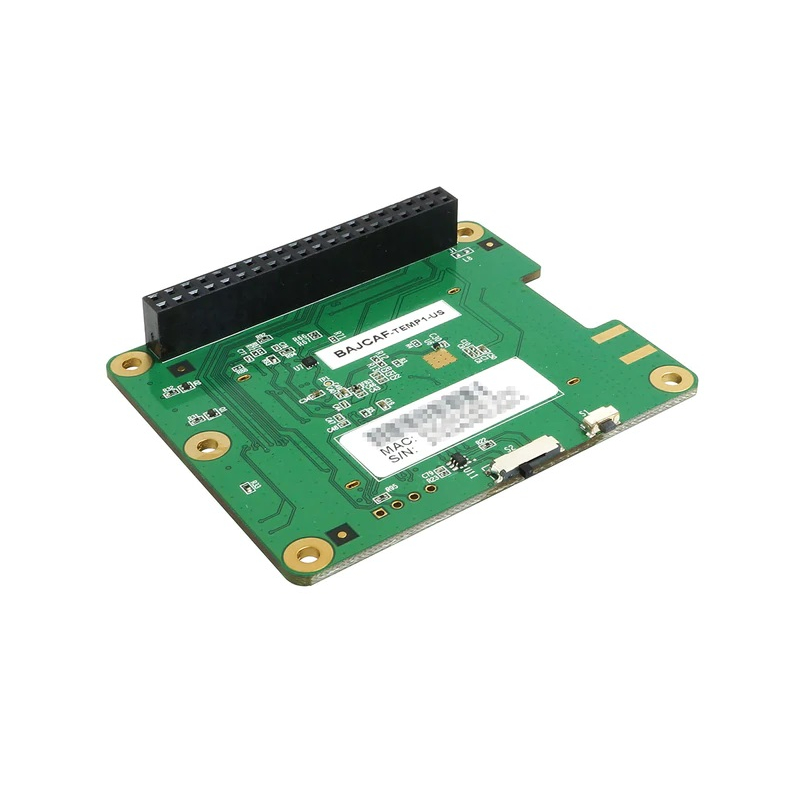

[ul] [li]Newracom™ NRC7292 WiFi HaLow™ SoC (IEEE 802.11ah draft 8.0 compliant)[\/li] [li]Frequency: 866 MHz(EU)[\/li] [li]Qorvo™ RFFM6901 front-end[\/li] [li]DIP switch for mode select and connector for UART[\/li] [li]Raspberry Pi™ HAT form factor with 40-pin GPIO connector[\/li] [li]3× LEDs[\/li] [\/ul]
